Enlarge	8 Channel Surveillance System Package 8 Cameras 320 GB HD 20 Inch LCD HDTV AS-8CHDVR-PKG FREE SHIPPING! 8 Ch DVR, 20 Inch LCD HDTV, 4 Dome Cameras, 4 Night Vision Cameras.
	Price: $2,999.99 Now $1,699.99
	Quantity:

Untitled Document

BACK TO SCHOOL SALE

Get an additional 10% off your purchase price, including items already on sale!...use coupon code "BCEDU" during the checkout process.

Hurry! Offer ends Thursday, September 30 at midnight
Certain restrictions apply

Shipping Estimator

To estimate the shipping cost of this item, please click the 'Shipping Rate Calculator' button below.

Product Description

Complete Security Surveillance System includes 8 Channel Digital Video Recorder, 20 Inch LCD HDTV, 4 Professional Grade Dome Cameras, 4 High End Outdoor Infrared Cameras plus 8 pcs of 60-foot BNC-ready cables and one power box. You may also purchase 80-foot or 100-foot BNC-ready cables at an additional cost. Installation is not included with this package.

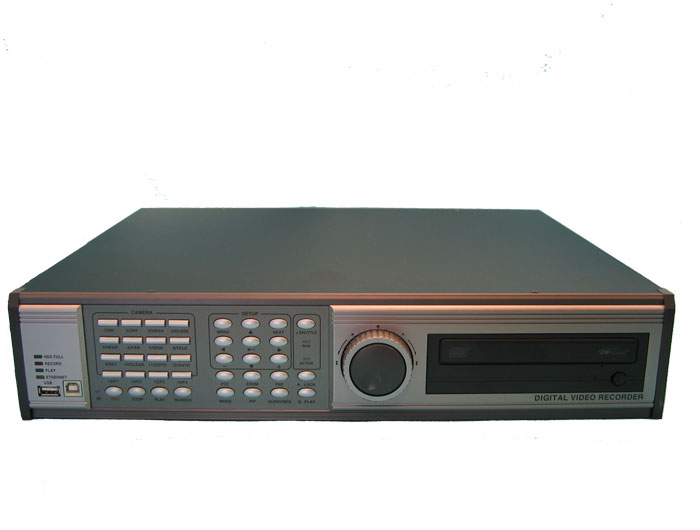

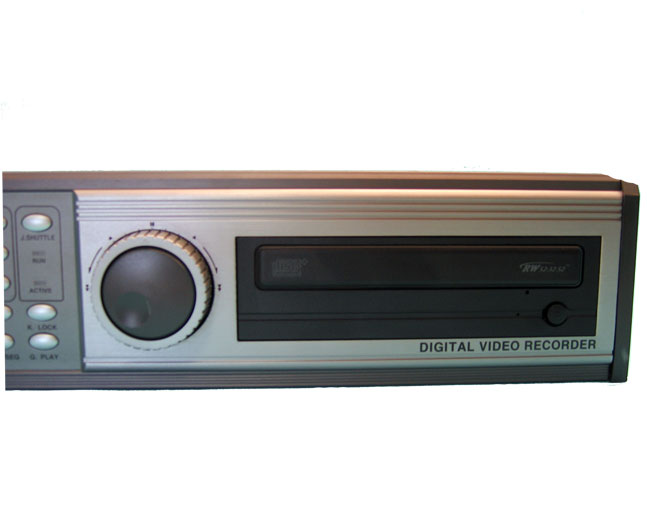

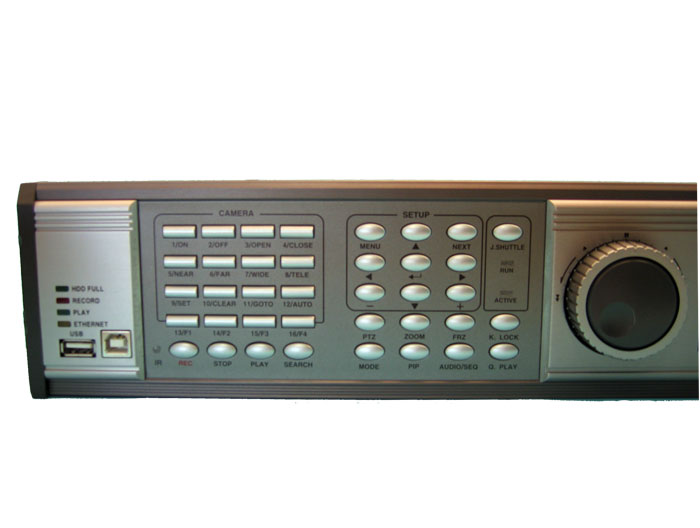

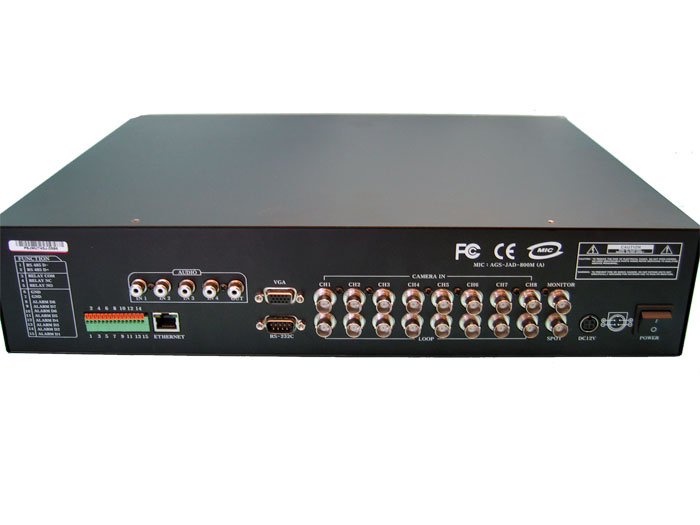

8 Channel Digital Video Recorder Surveillance System with 320GB HDD AS-0800-JP2

Features

Real time display per camera. Auto Sequence. PIP (picture in picture)
Event Popup. Digital Zoom. Display Freeze
Simple Playback mode. Simple PTZ camera control
Variable Record resolution (for higher picture quality or higher recording speed
Efficient Image Quality setup in 5 steps
Schedule Record/ Holiday Record. Event Record (Alarm/ Motion. Emergency Record
View Live and Playback images across IP network. Copy Image across network
Outstanding picture quality by JPEG 2000 compression algorithm
Suitable for recording not only images but also text
Simple Back-Up using built-in CD Writer
Multi language (English, Spanish, German, French, Italy, Japan, China)
Lock the system by password
PAL/NTSC
Control the unit by using Remote Control

Specification

Storage Capacity: Up to 2 HDDs with no limitation in capacity (SATA HDD support
Video: (Input) Composite- 8Ch (Outputs) Composite- 2Ch (Monitor/Spot), VGA- 1Ch (Supporting TFT LCD Monitor/Option) (Loop Out)- 8Ch (Compression)- JPEG2000 (Compression Rate) Basic, Normal, Enhanced, Super Fine (Display Speed) Real time display
Audio: (Input) 4Ch microphone input (Output) 1Ch speaker output
Power Requirements: DC 12V 6.67A Adaptor
Weight: 17 lbs / 8.5 kg
Dimensions: 436 x 396 x 88 (mm)

System Includes

DVR Main Unit
320 GB HDD
Remote Controller
Power Cable
Power Adapter
User's Manual
Software CD
Rubber Pad
HDD absorber
Battery for Remote Controller
Rack mount bracket/ Bolts

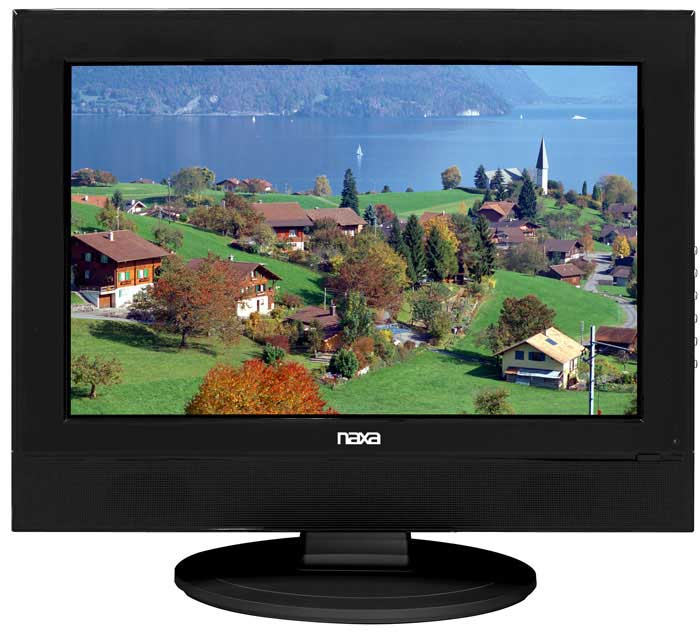

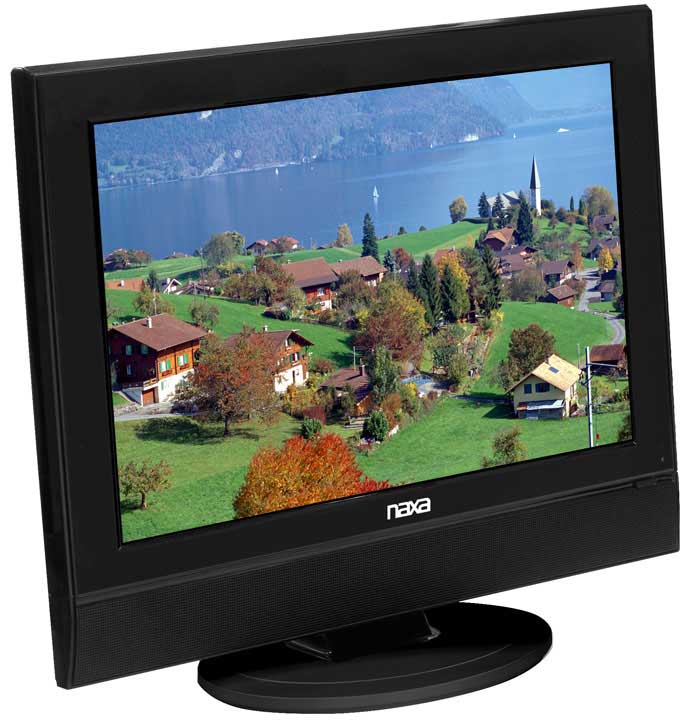

20 Inch AC/DC Wide Screen LCD TV with ATSC and NTSC NX-545

Safety and regulation	UL,FCC
Screen size	20" wide
Panel Brand	AU, CMO, QDI
Purpose	Monitor
Super High Definition	1680 x 1050
Aspect ratio	16:10
Display Area	408.24(H)×255.15(V)
Dot Pitch (mm)	0.2385(H)×0.2385V)
Display Colors	(RGB 6Bit)
Contrast Ratio	1000:1(TYP) by panel/ 600 : 1
Brightness	300 nits(TYP) by panel
Viewing Angle( L/R/U/D )	75/75 /70 /65(CR≥10)
Response Time	5ms(Tr+Tf /typ.) / 16 ms

Reception
Chassis (NTSC/ATSC)	MTK
TV system	NTSC/ATSC
Tuning system	FST
Antenna impedance	VHF/CATV/UHF 75Ω unbalanced
A/D TV Tuners	Yes/181CH
HDTV input capable	480P,480I,576I,576P,720P,1080I

Sound
Store	YES
Bass	YES
Treble	YES
Balance	YES
Speakers	2
Audio power	≥2*3W
Earphone Output	YES

Connection jack
RF(ATSC/NTSC)	AIR/CATV 75ohms coaxial × 1
Video In	YES:RCA 75ohms composite video × 1
S-Video	YES:4-pin DIN × 1
YPbPr	YES X1
HDMI	YES X1
PC In	D-sub 15Pin × 1
Audio In	RCA for S-Video &AV ×2(L+R)
	Earphone in Jack for YPbPr& PC × 1
Audio Out	Earphone Jack×1

Other features
Last Channel recall	YES
Automatic tuning	YES
OSD Language	ENGLISH、FRENCH、SPANISH
Audio mute	YES
Power supply	AC 100V～240V 50Hz/60Hz
	DC 12V/5A
Max power consumption	≤60W
CCD	YES
V-CHIP	YES
MTS	YES

Cabinet
Front cabinet	Common
Rear cabinet	Common
Bracket and jacket etc. assembly	Common

Accessory
Packing box	GIFT BOX
USER'S Manual	ENGLISH
Remote control	1
Adapter	1
Foams	Common
Battery	1.5V(AAA)×2
Giftbox Dimension (L×W×H）	22.64 x 9.06 x 20.08 in
Unit Dimension(LxWxH)
Net Weight(LBS)	11.46 lbs.
Gross Weight(LBS)	15.43 lbs
Loading（20‘/40'FCL/40HQ）

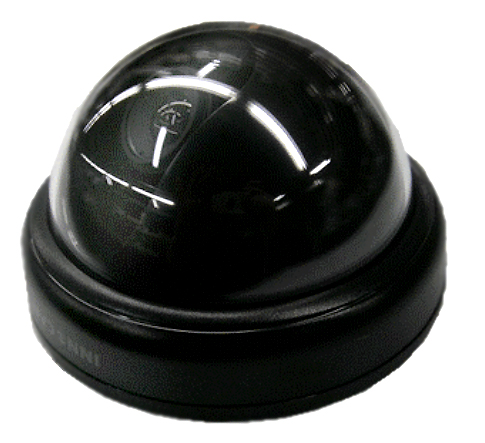

Arrow High Resolution DSP Color Dome Camera ST-270A

Features:

Digital Signal Processing (DSP) allows better picture quality.
Center Zone Weighted back light compensation
High quality pictures in low-light conditions
Full Auto White Balance
Auto Gain Control, Electronic Iris

Specifications:

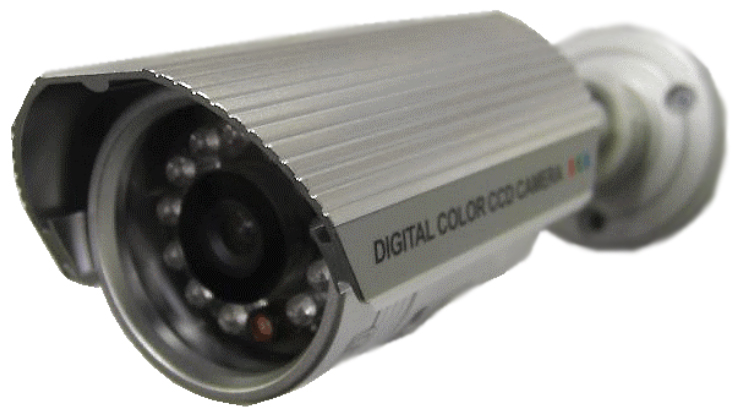

Arrow Infrared LED Camera (Day & Night) ST-2020CIR

Features:

1/3 of an inch Sony Super HAD CCD
High Resolution 1/3 of an inch color CCD pick-up
270K (380TV Line)
Built-in 20IR LED

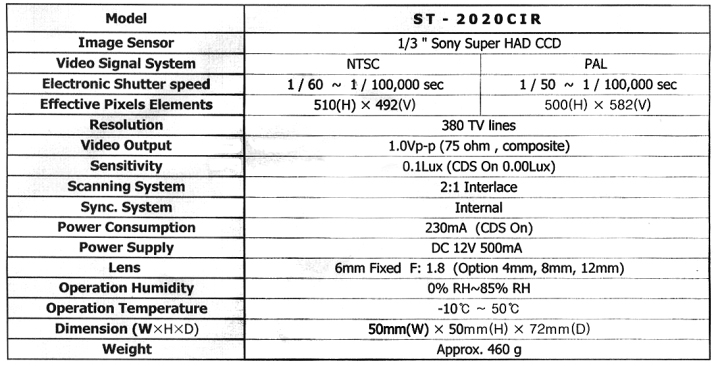

Specifications:

Package Includes:

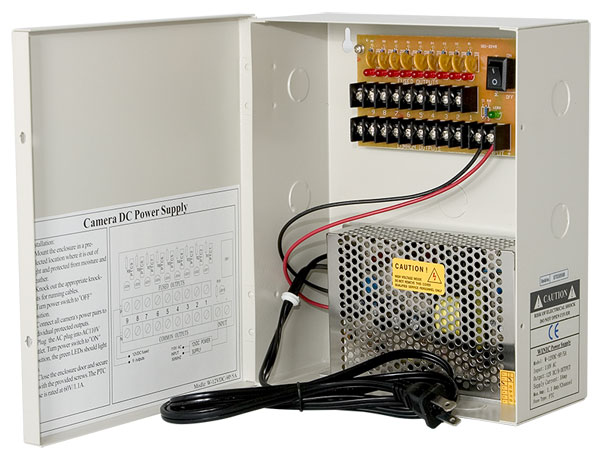

12V DC 5A Security Camera Power Supply (1 pc)

60 FT BNC Cable (8 pcs)

Optional:

8 Arrow High Resolution DSP Color Dome Camera ST-270A or
8 Arrow Infrared LED Camera (Day & Night) ST-2020CIR Available...
