Enlarge	DreamTech Digital Security Surveillance System w/ 160GB HD DTS-400 FREE SHIPPING US RESIDENT ONLY *
	Price: $699.99 Now $489.99
	Quantity:

Untitled Document

BACK TO SCHOOL SALE

Get an additional 10% off your purchase price, including items already on sale!...use coupon code "BCEDU" during the checkout process.

Hurry! Offer ends Thursday, September 30 at midnight
Certain restrictions apply

Shipping Estimator

To estimate the shipping cost of this item, please click the 'Shipping Rate Calculator' button below.

Product Description

NOTE: We don't ship to Hawaii, Puerto Rico, Alaska, APO address, PO Box

FREE SHIPPING: Take Advantage of this Deal (US Resident ONLY)

Features:

MJPEG Compression Algorithm
Real time live display in all channels
Triplex (Playback/Recording/Ethernet)
Web monitoring and download through network
Easy control by Mouse
USB host for data backup
Easy PTZ Camera (MOUSE)
Password protection
Web control

LIVE DISPLAY:

Real Time display per camera
Auto Sequence
PIP (Picture in picture)
Digital Zoom of display
Simple playback mode
Simple PTZ camera control

RECORD:

Variable Record resolution (For higher quality or higher recording speed)
Efficient image Quality step in 5 steps
Schedule recording
Event Record by alarm and motion detection - Save Disk Space by only recording when there is motion.

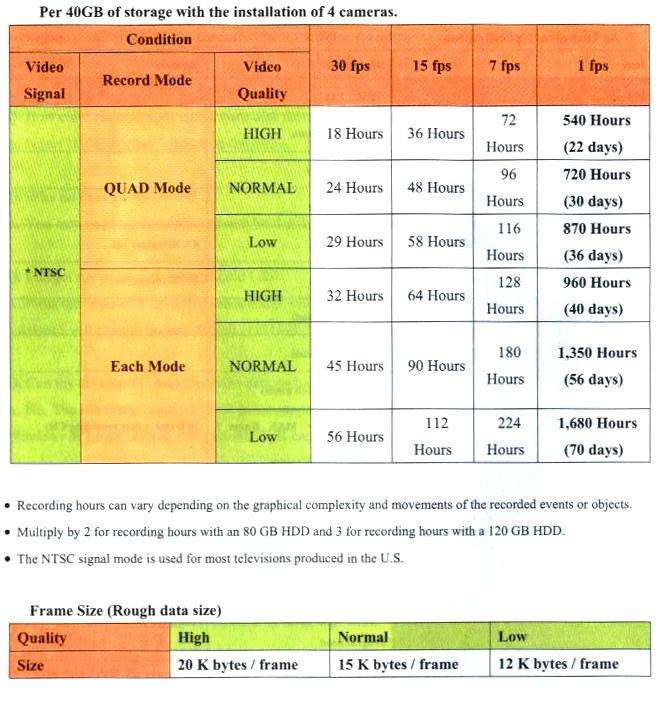

Approximate Recording time table:

Network:

Monitoring and Search by using Remote Viewer via network

Playback:

Search and playback by recorded data size and date/time

Various steps in forward playback speed
(X2, X4, X8, X16, X32 fast playback. 1/16, 1/8, 1/4, 1/2 slow playback)
Various steps in backward playback speed.
(X2, X4, X8, X16, X32 fast playback. 1/16, 1/8, 1/4, 1/2 slow playback)

Data backup:

Simple backup using CD-RW
Remote viewer backup in AVI, JPEG file
Supports bigger capacity of HDD
USB Device Back-up available

Others:

Supports UNI-CODE
Supports SPOT Monitor
PAL/NTSC Auto detection

Specifications:

Multiplex function		Triplex (Playback/Recording/Ethernet)
Storage Capacity	Internal	HDD	High capacity HDD support
		CD-RW	For Backup
Video	Inputs	Composite	4Ch
	Outputs	Composite	2Ch (Monitor/SPOT)
		VGA	1-CH VGA (Optional)
	Compression		MJPEG
	Compression Rate		LOWEST
			LOW
			NORMAL
			HIGH
			HIGHEST
	Live Display Speed		Real Time Live Display
	Recording Mode		Time,Motion,Schedule,Alarm
	Search		Event Search, Date/time Search, Percent Search
	Recording Speed (NTSC/PAL)		Max. 120IPS (NTSC) 100IPS (PAL)
	Recording Resolution (NTSC/PAL)		Half D1 (704x240/704x288), CIF (352x240/352x288)

Switching Interval			1~99 Sec selectable
Live Division Screen			1/4 Split
			Digital Zoom, PIP in live mode
Alarm	Inputs		4 Alarm (NO/NC Selectable)
	Outputs		1 (NO/NC)
	Post Alarm		Alarm output duration: 1~99 Sec selectable

Network			Ethernet (TCP/IP), Web viewer included
Backup			USB / CD-RW Back up, Download via IP Network
PTZ Control			RS-485, MOUSE (PAN/TILT/ZOOM)
Firmware upgrade			USB Port for firmware upgrade, CD-R
Serial I/F		RS-485	For PTZ Camera Control
		RS-232C	For operation using keyboard of PC

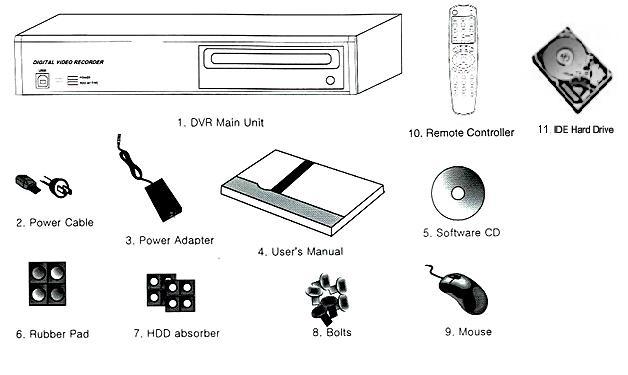

Package Contents:

Package Contents	Description
1. DVR Main Unit	Stand-Alone Digital Video Recorder
2. Power Cable	AC power supply to adapters for 12V DC power
3. Power Adapter	DC power supply
4. User's Manual	User's Manual
5. Software CD	Remote Viewer Software & Backup CD Player
6. Rubber Pad	Prevent DVR from slipping. Attach it to the bottom of main unit.
7. HDD adsorber	Absorbing the mechanical shock of HDD against the case bottom.
8. Bolts	Bolts for fixing HDD
9. Mouse	A mouse controlling all functions of DVD
10. Remote Controller	DVR control
11. IDE Hard Drive	160 GB IDE Hard Drive

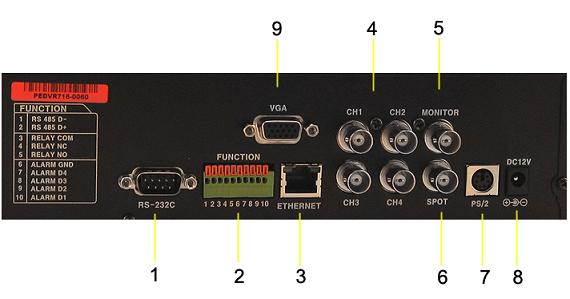

BACK PANEL:

	Name	Function
1	RS-232C	Connection to external device as PC using RS-232C to control the DVR
2	RS 485	Connection with PTZ camera or other external device using RS 485 interface
	RELAY Output	Relay out terminal
	SENSOR Input	Sensor input terminal
3	ETHERNET	Connection to Ethernet device
4	CAMERA Input	Connection with camera (NTSC/PAL)
5	MONITOR Output	Connection with Composite Monitor (NTSC/PAL)
6	SPOT Monitor Output	Connection with Composite Monitor (NTSC/PAL)
7	PS/2	Connection with PS/2 MOUSE
8	DC Power	DC over 12V adapter
9	VGA	Connection to VGA Monitor (CRT type or TFT LCD monitor)
