Chief Fusion Universal Micro-Adjustable Tilt Wall Mount for 55-75 inch LCD Flat Panel Screens XTMU

Availability: In Stock

Special Price: $199.99

Retail Price: $379.99

You Save 47%

E-mail this product to a friend

Quick Overview

SKU #: XTMU

Chief Fusion Universal Micro-Adjustable Tilt Wall Mount for 55-75 inch LCD Flat Panel Screens. Centerless lateral shift. Centris Low-profile Tilt. Click connect Tool-less latching. XTMU

Description
Shipping
Ratings

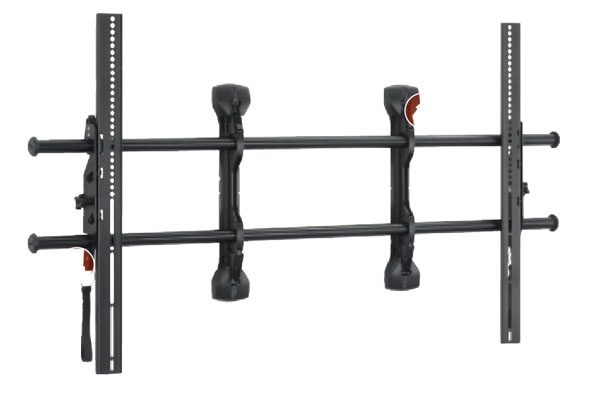

FUSION Universal Micro-Adjustable Tilt Wall Mount (55-75" Displays)

The installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments for extra-large flat panel screens.

Features:

ControlZone Leveling for post-installation fine tuning of height and leveling
Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
Centerless Shift provides up to 23.5" (597 mm) of post-installation lateral shift - 11.75" (298 mm) left/right of uprights - for limitless centering
ClickConnect offers an audible click when the screen safely engages with the mount
Built-in cable stand provides easy access under the screen
A full line of accessories can be installed with the mount and the entire unit can be adjusted together

Specifications:

Tilt: 0 - 12 degrees
Max Lateral Shift: 23.5" (597 mm)
Height Adjustment: +/-0.5"
Mounts on Studs: 24" or 32" on-center
Dimensions: HxWxD 16.5" x 48.44" x 1.99" (42 x 123 x 5 cm)
Max Mounting Pattern: height - 26" (660 mm), width - 49.2" (125 cm)
Min Wall Stud Spacing: 24" (must span 3 studs on 16" on-center wall)
Weight Capacity: 250 lbs (113 kg)
Color: Black

NOTE: Shipments to all international destinations as well as Hawaii, Puerto Rico, Alaska, APO addresses or PO Boxes may require different shipping costs than what will be presented during the checkout process. If necessary, we may contact you to update your shipping charges after your order has been placed. Please call us at 888-488-2635 for details should you have any questions.
