Chief Universal Dual Swing Arm Wall Mount for LCD Flat Panel Screens PDRUB

The PDR allows for perfect LCD or Plasma TV placement, and ensures ideal viewing from any angle.

• Ships with a universal interface bracket

Features:

• Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
• Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
• Q-Latch Mounting System secures flat panel to mount with a latching flag
• Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
• CableTrac System provides built-in cable management channels inside the arms for a clean installation
• Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen)

Specifications:

• Depth From Wall*: 3.4" (86 mm)
• Extension: 37" (940 mm)
• Tilt/Roll: +5_, -17_ / ±2.5_
• Swivel: up to 90Á left/right
• Height Adjustment: 1" (25 mm)
• Lateral Shift: up to 9" (229 mm)
• Mounts on Studs: 16" (406 mm) on-center with 4.5" (114 mm) left/right lateral shift

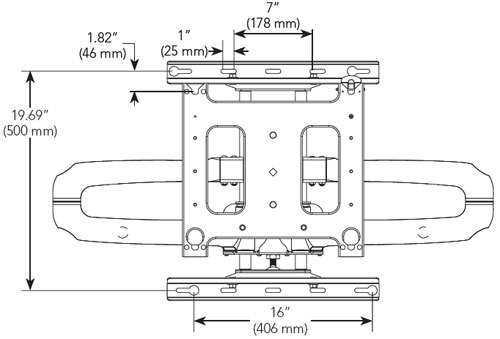

• Dimensions (HxWxD): 22.04" x 39.5" x 3.4" (56 x 100.3 x 8.6 cm)
• Color: Black or Silver
• Weight Capacity: 200 lbs (90.7 kg)
• Channel Size Width Each Arm: 0.63" (16 mm)

Note: Depth does not include screen interface (will add 0.5"-2")
