Chief Dual Swing Arm Wall Mount for LCD Flat Panel Screens PNRUB

View large flat panel TVs from any angle with the PNR Dual Arm Wall Mount.

• See PDR model for arm extension up to 37"

Features:

• Centris Fingertip Tilt allows you to select the perfect tension for your screen's center of gravity
• Post-installation height adjustment up to 1" (25 mm) for ultimate flexibility
• Q-Latch Mounting System secures flat panel to mount with a latching flag
• Easy connect/disconnect without tools
• Extends up to 25" (635 mm) for viewing from any angle
• CableTrac System provides channeled cable management for easy cable routing
• Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen)

Specifications:

• Depth from Wall*: 3.25" (83 mm)
• Extension: 25" (635 mm)
• Height Adjustment: 1" (25 mm)
• Tilt: +5_, -15_
• Roll: +/-2.5Á
• Swivel: 90Á left/right (depending on screen size)
• Integrated Lateral Shift: 4.5" left/right

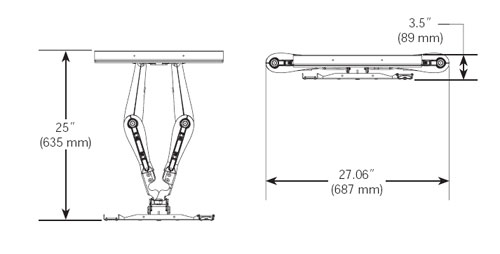

• Dimensions (HxWxD): 22.04î x 27.25î x 3.25î (560 x 692 x 83 mm)
• Weight Capacity: 200 lbs (90.7 kg)
• Color: Black
• Arm Channel Size: 0.63" Wide (16 mm)

NOTE: Depth does not include screen interface (typically 1" or less)
