Chief KONTOUR KCD Series Dual Arm Desk Mount Single Monitor KCD110B (Black)

Chief KONTOUR KCD Series Dual Arm Desk Mount Single Monitor

Model: KCD110B

Color: Black

An ergonomic solution that provides a broad range of motion for viewing small flat panel TVs and monitors from multiple angles. Perfect for home and office installations.

Features

• Centris Fingertip Tilt provides smooth tilt adjustment in all directions
• Clamp option allows mount to be installed from the top of the mounting surface
• Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt
• Smooth extension to achieve ideal viewing angle
• Independently adjustable tension at pivot points provides customized control and can be optimized for touch screens
• Built-in cable management for a clean installation
• Clean look with minimal hardware visible from underside of work surface
• Easy installation with teardrop hole pattern, ships fully assembled
• Portrait and landscape rotation and side-to-side pivot
• VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)

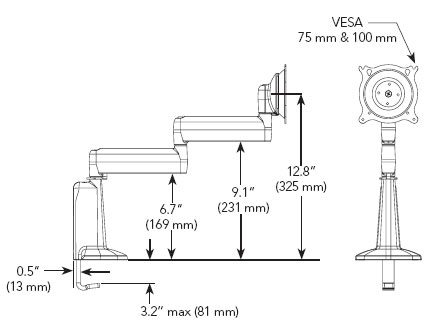

• Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3" (10-76 mm)

Specifications

• Color: Black
• Desktop Thickness Range: 0.5 - 3.5" (13 - 89mm)
• Grommet Hole Size Range: 0.38 - 3" (10 - 76mm)
• Maximum Extension: 16.38" (416.1mm)
• Minimum Depth: 2.19" (55.6mm)
• Mounting Pattern Compatibility (Universal Versions): 75 x 75mm ,100 x 100mm
• Number of Monitors: 1
• Orientation: Landscape, Portrait
• Overall Dimensions (H x W x D): 6.9" x 5.6" x 4.2" (175 x 143 x 107mm)
• Post-Installation Leveling (Roll): Yes
• Solution Type: Universal
• Tilt: + 15° , - 15°
• Typical Screen Sizes: 10 - 30"
• Weight Capacity: 40 lbs (18.1kg)
